6m LDT Removable Packer Roller
Additional Information
The 6m Low-Disturbance Toolbar now has the ability to be used in-front of trailed machines or can also have a packer roller added to allow the machine to be used as a low disturbance loosener, providing a full package to current and new customers who rely on versatility and flexible farming techniques.
The depth control for the roller is achieved using pins each side of the frame which allows the packer roller to be independent of the toolbar parallel linkage system. This allows you to lift/lower the loosening tines and disc without interfering with the packer setup if required. The packer frame can then be removed (leaving all the bolt on bracketry assembled to the rear of the 6m LDT) by just removing the two main pivot pins and driving away from the packer on its stands.
Options and Specifications
A very versatile machine....
Options.....
The 6m LDT Packer Roller Frame offers the ability to use the toolbar as a low disturbance loosener.
Whilst having the roller on the back of the machine, the toolbar still has the ability to lift and lower the cultivating legs and discs within the frame/chassis whilst not interrupting the rear roller.
This feature allows the machine to be used on it's own or once the packer is removed it's back in front of trailed machines again.
One of the key attributes of the machine is that it provides options for the farmer.
Quick & Easy.....
Connecting the 6m LDT to the Removable Packer Frame is quick and easy. All bracketry that set the packer frame depth etc. along with the rear hitch in the toolbar do not need to be moved. This allows for the toolbar to be connected to a trailed machine very easily whilst also allowing the packer roller to be mounted back onto the toolbar with minimal hassle.
Enhance your system...

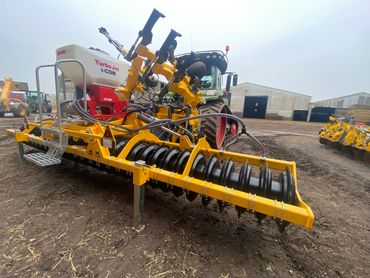

To enhance the use of the 6m LDT and packer frame we offer to mount seeder applicators onto the frame to allow the machine to be used for sewing OSR and cover crops etc.
A rear access platform and seed outlet brackets can be added to allow the machine to place the seed accurately behind the low disturbance tines or to broadcast across the working width of the machine.
Machine Features
We offer the Removable Packer Roller (RPR) in three widths: 3m, 4m & 6m
- The roller allows the toolbar to be used as an independent machine or when taken off it can be used in front of any trailing implement.
- The packer roller is parked on it's own stands and is very easy to connect on/off the toolbar.
- Seeders and outlet brackets can be fitted to the packer frame to allow the combination to become a seeding machine.
- The Grange 'Easy-Clean' can also be added to the rear roller scraper system to allow minimal downtime when moving from fields or if soil build up causes issues in the roller.
Specification: 6m Removable Packer Frame (LDT)
- X1 Pair of hydraulic services to connect into the rear of the 6m LDT service bulkhead plate
- X4 Parking stands
- X2 Heavy Duty bolt on brackets with depth pin adjustment to determine tine working depth of the 6m LDT
- X2 Stands with removable pins to easily park the packer frame on hard standing and allows the 6m LDT to be used as a standalone machine
- X1 6m hydraulic folding Packer Roller (Includes transport locking bar)
- X1 Road lighting kit
Optional extras
- Rear access platform, seeder mounting brackets & hosing
- 12 single seed outlet brackets
- Stocks Turbo Jet 8 i-Con
- Seed pipes and bracketry (for slug and OSR application)
- Rear coulter bar
- 12 Disc coulters
OSR Establishment & Strip Till Systems....
OSR Establishment & Strip Till Systems....
OSR Establishment & Strip Till Systems....
Picture above of a Grange 6m LDT with seeder applicator drilling OSR direct into barley stubble in August #onepass #directdrilling
6m LDT & Packer Roller frame in action...
OSR Establishment & Strip Till Systems....
OSR Establishment & Strip Till Systems....
Using the Grange 6m LDT into stubble which had a light pass with the Carrier first to incorporate muck, OSR planted at 0.5m centres.
