Strip-Till Preparator

Key Information

Machine Features

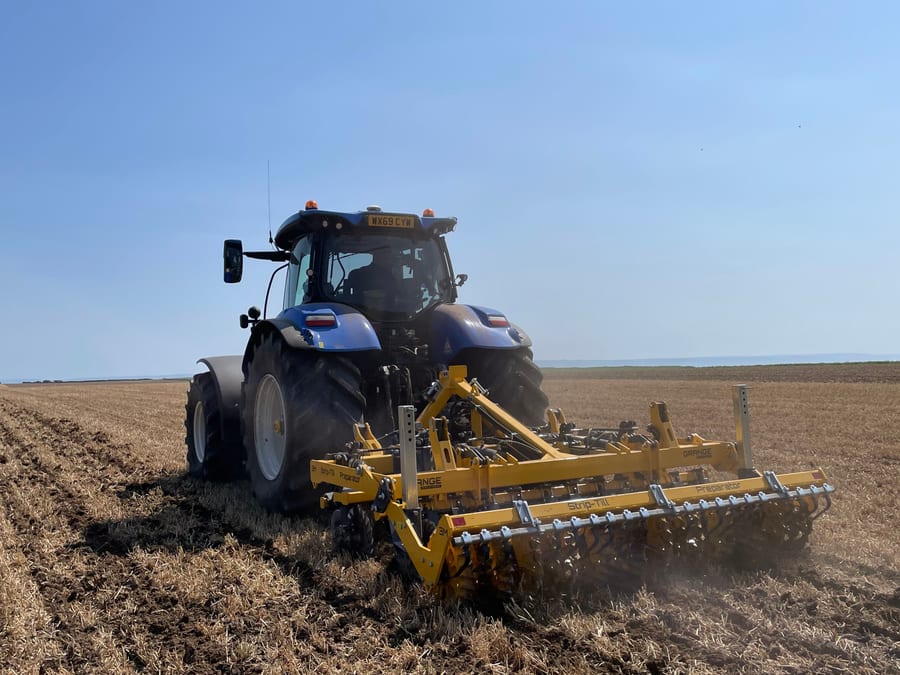

The Preparator has been designed from carefully listening to farmers over the past few seasons who are wanting to perfect their establishment of maize. We have designed and built three prototype machines to date which have had various changes and additions to the frame and the general layout of our cultivation process in the row. We are now very pleased to announce full production of the Strip-Till Preparator at Lamma Show in January 2023.


The machine has a particular cultivation layout that we have worked on tirelessly over the last three seasons. The layout of our three independent rows of cultivation discs that can be hydraulically adjusted whilst working in harmony with our low disturbance tine and point allows us to create a perfectly cultivated row that is ready for a seed to be planted into.  This system is then finished with a zonal Guttler prism roller ring that is the final part of the cultivation pass to breakdown any clods that have flowed through the system as well as consolidating the row in readiness for a planter when the time suits to sew.

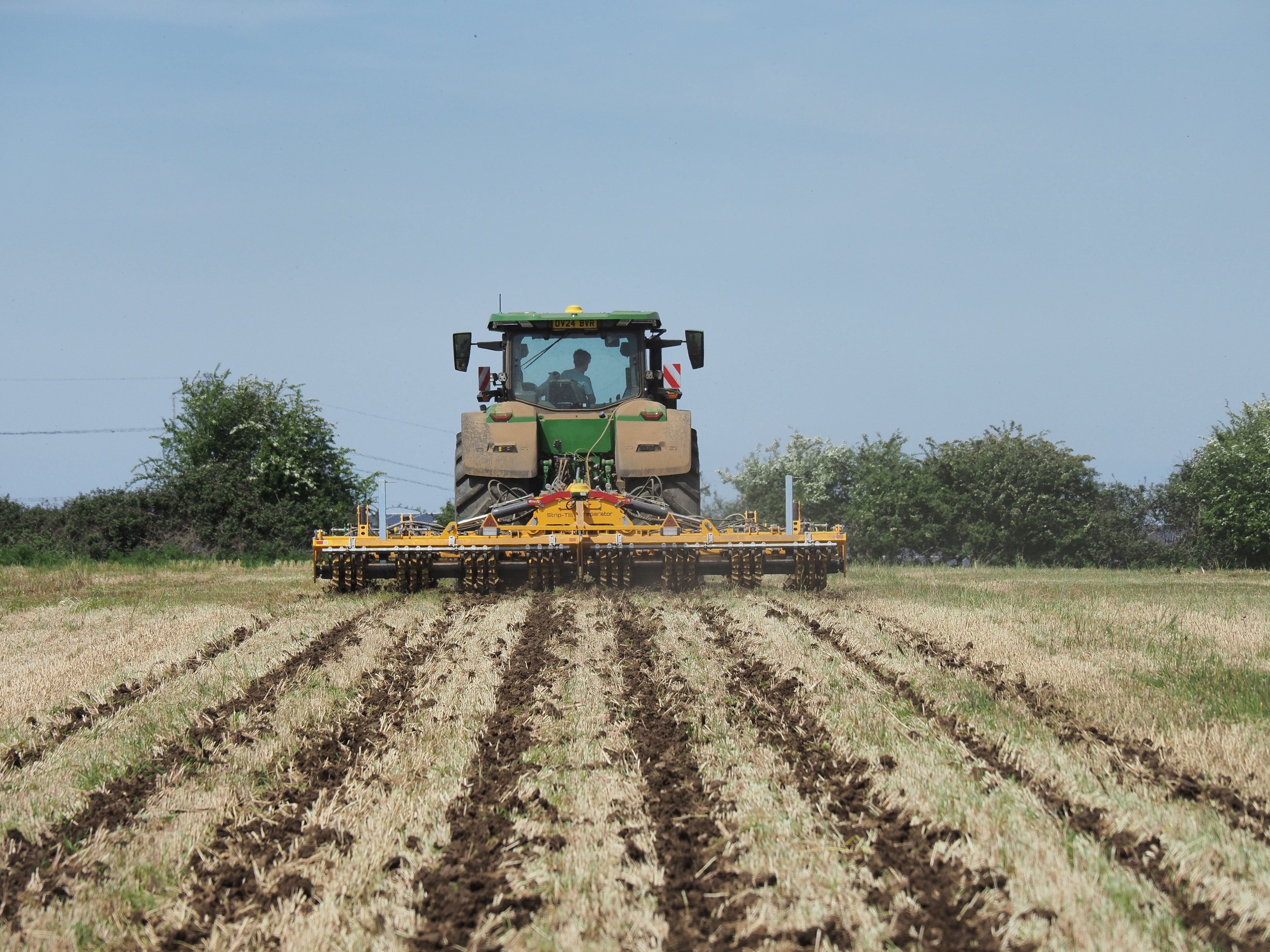

One of the unique features that the Preparator offers is the option of applying either granular or liquid fertiliser behind the loosening tine in preparation for seed to be placed into the row.

Options and Specifications

  • Available in: 3m, 4m, 4.5m and 6m

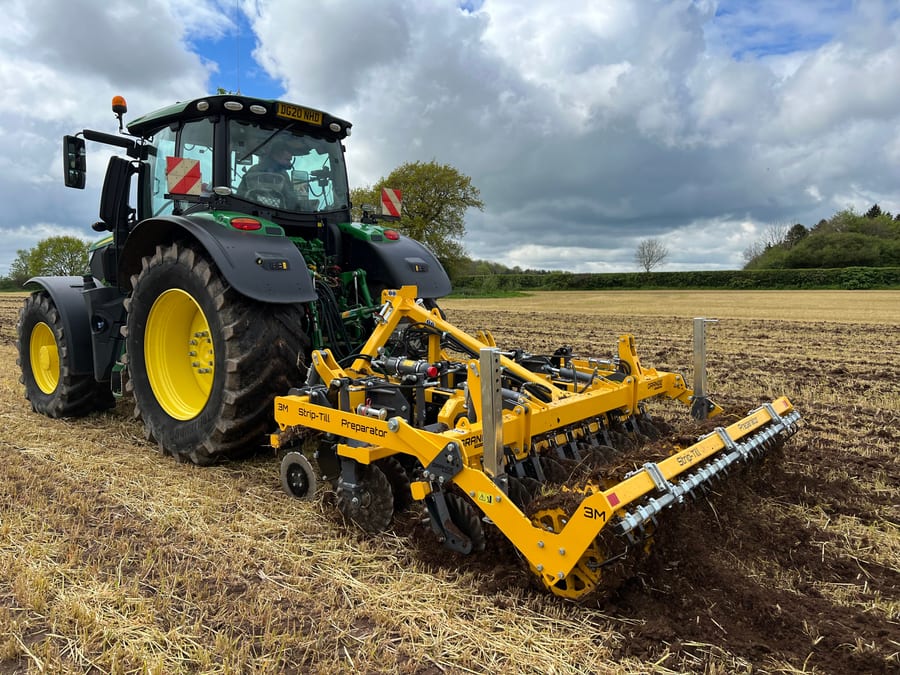

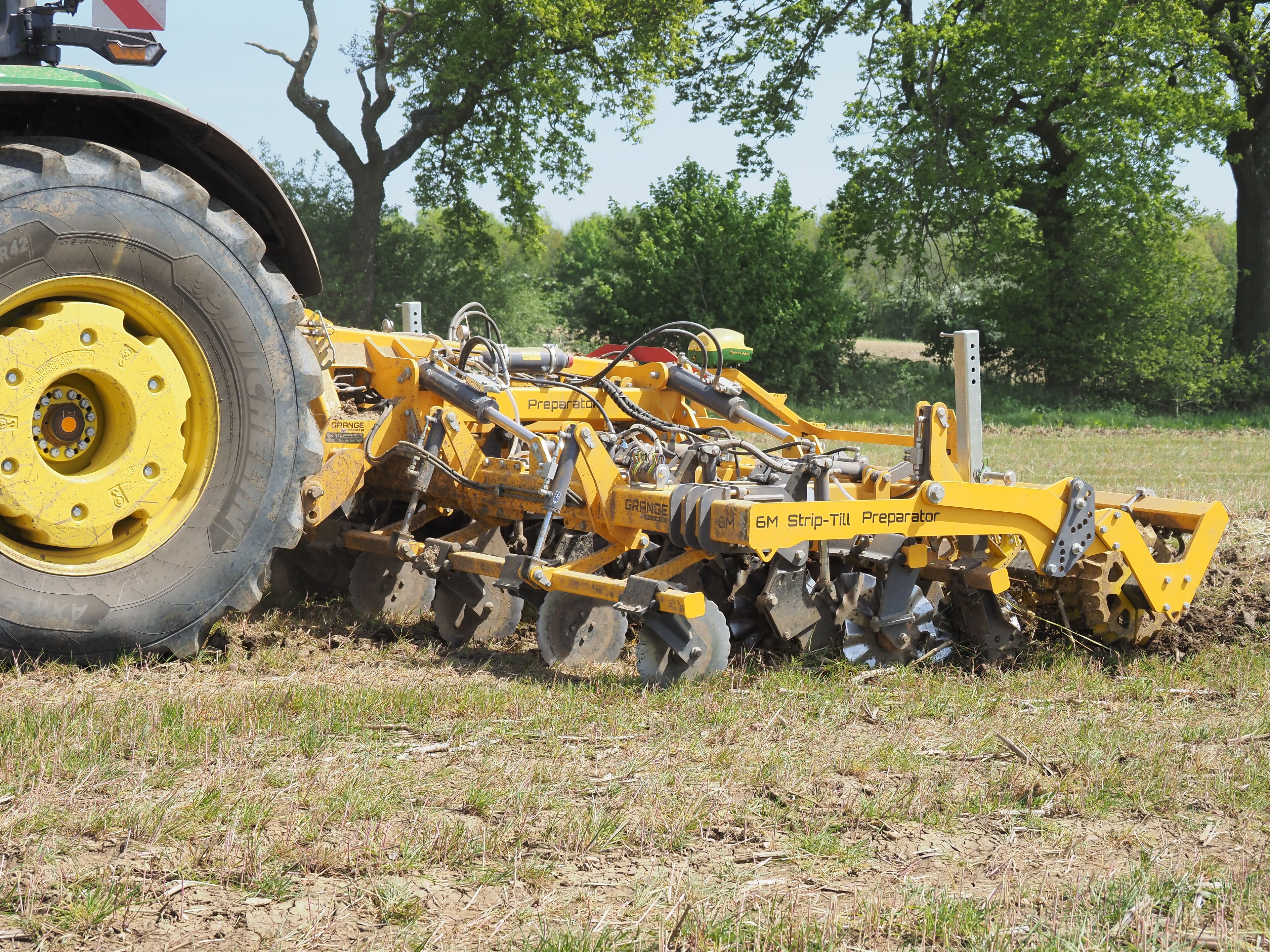

  • Low Disturbance loosening legs with a range of 300mm working depth
  • Row spacing - 0.45, 0.5m, 0.6m, 0.75m & 0.8m row centre spacing
  • Option of either Shear Bolt or Hydraulic Reset Protection

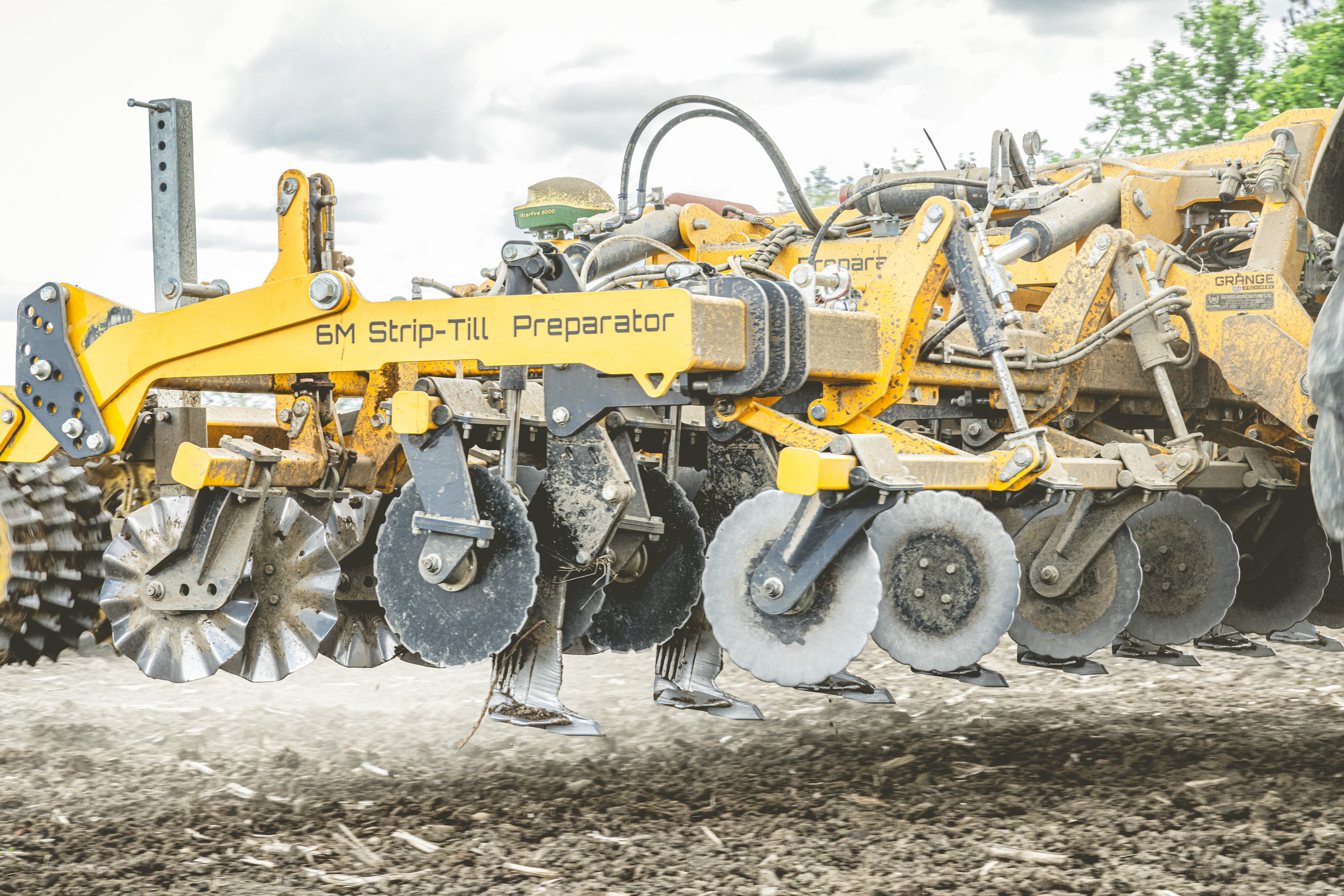

  • 450mm Hydraulic Front cutting      discs for trash management

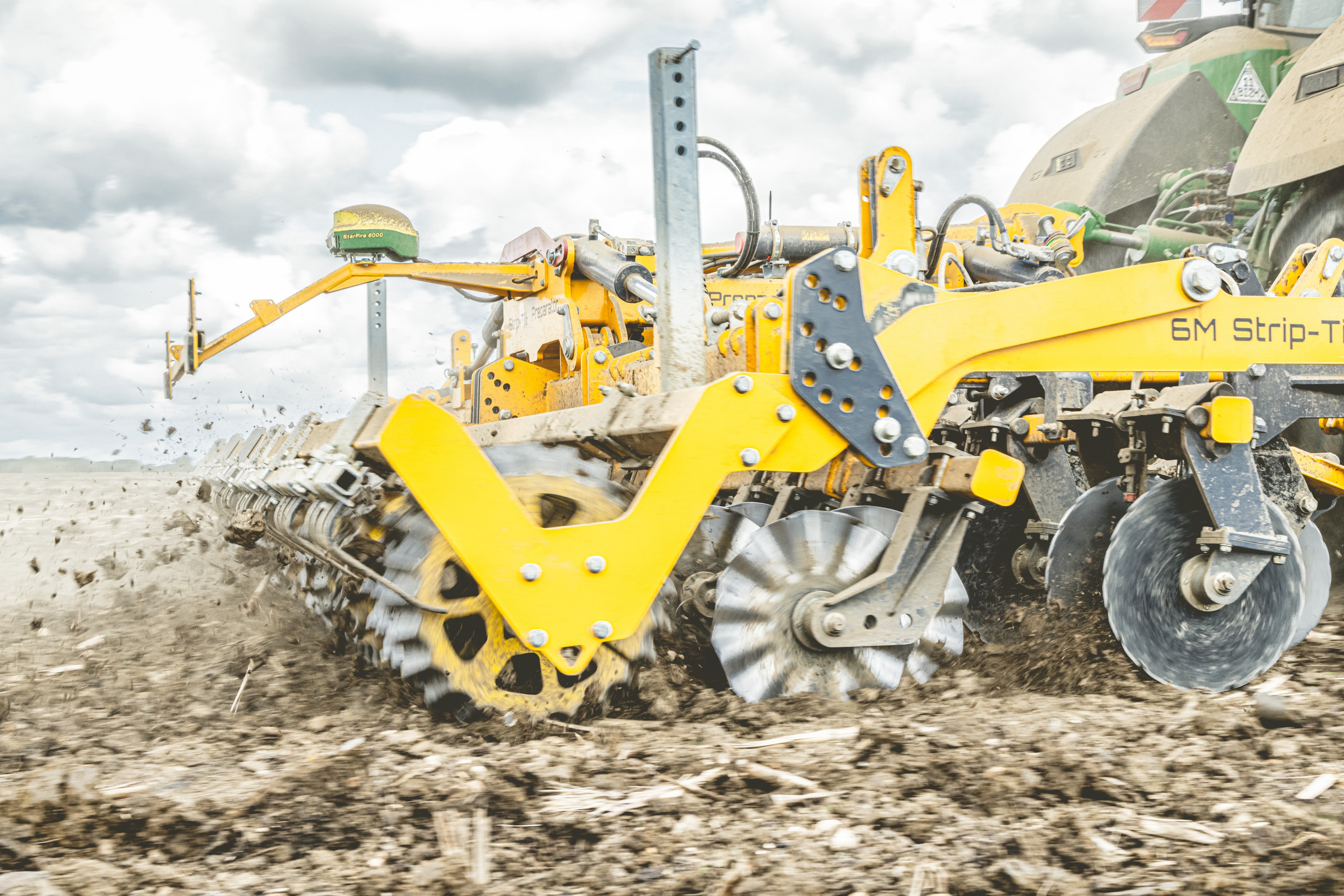

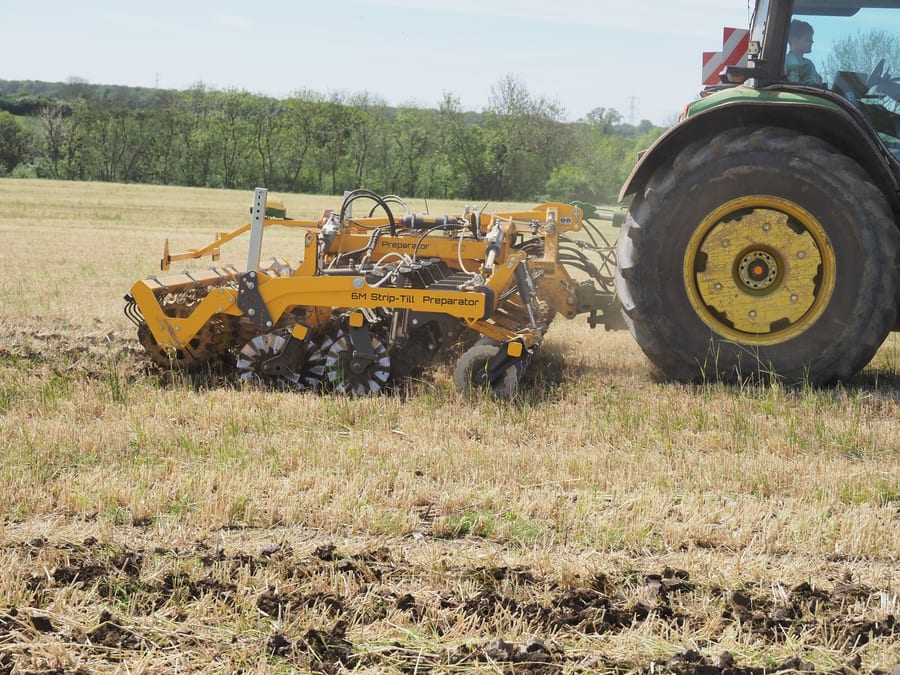

  • X2 Hydraulic catching discs (per      row) that can be adjusted to enhance/decrease soil flow into the row for      the rear offset discs to cultivate dependent on type and thickness of      surface residue
  • X2 Rear mounted offset wavy discs      (per row) that are hydraulically adjustable up/down to determine the      finish of the soil condition in the row to enable a good seedbed for      planting.

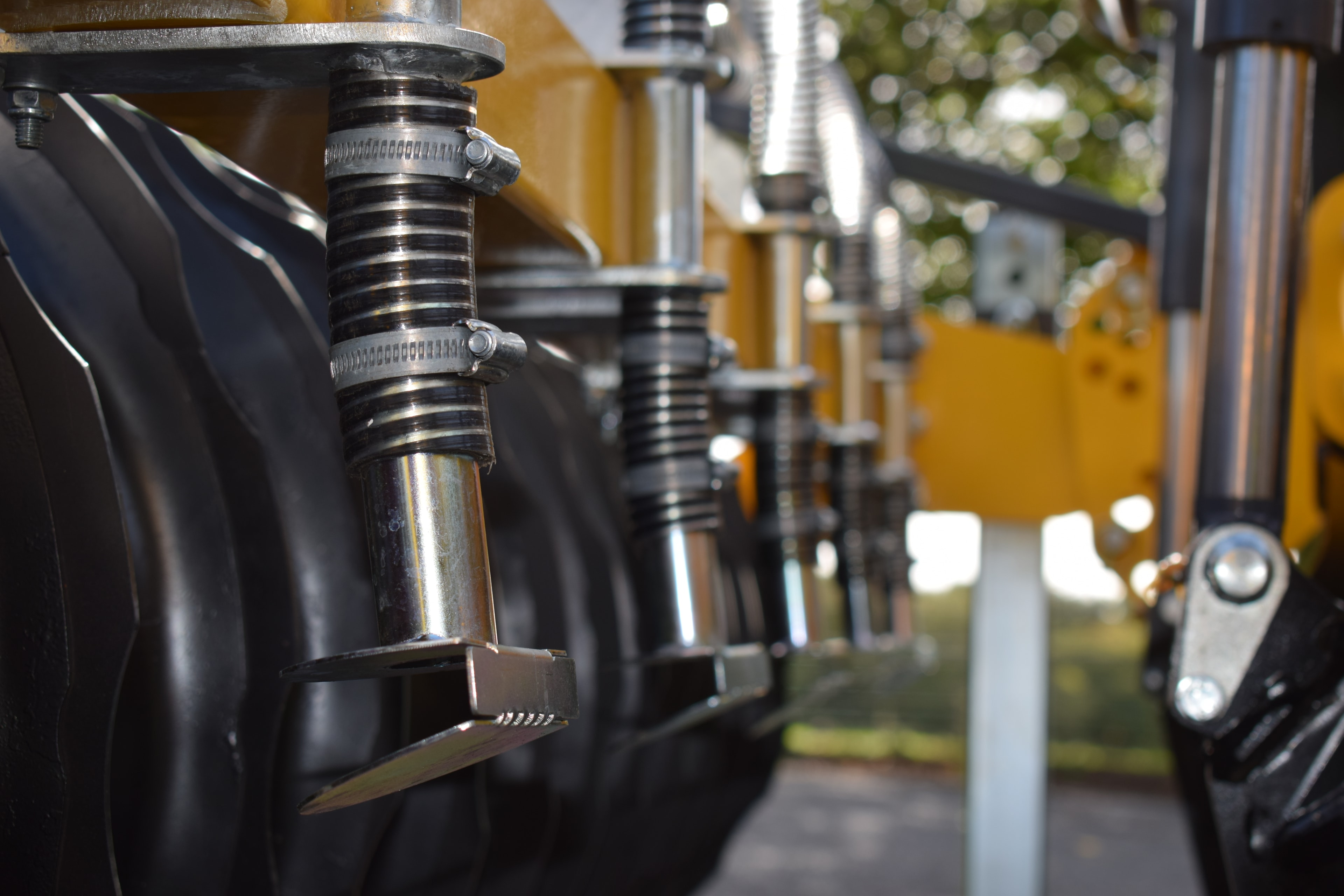

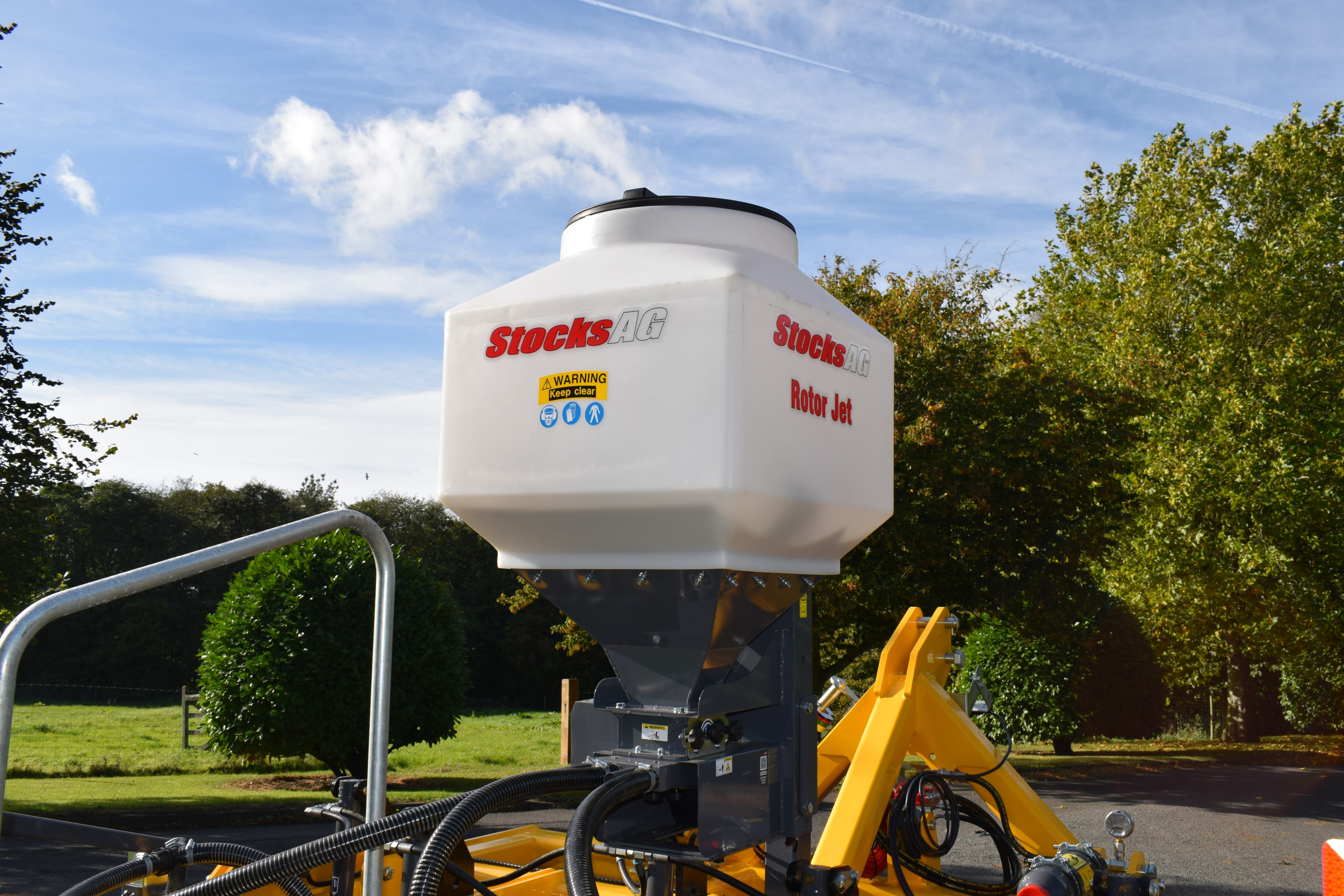

  • Optional liquid or granular  bracket to place fertiliser within the row from a mounted distribution

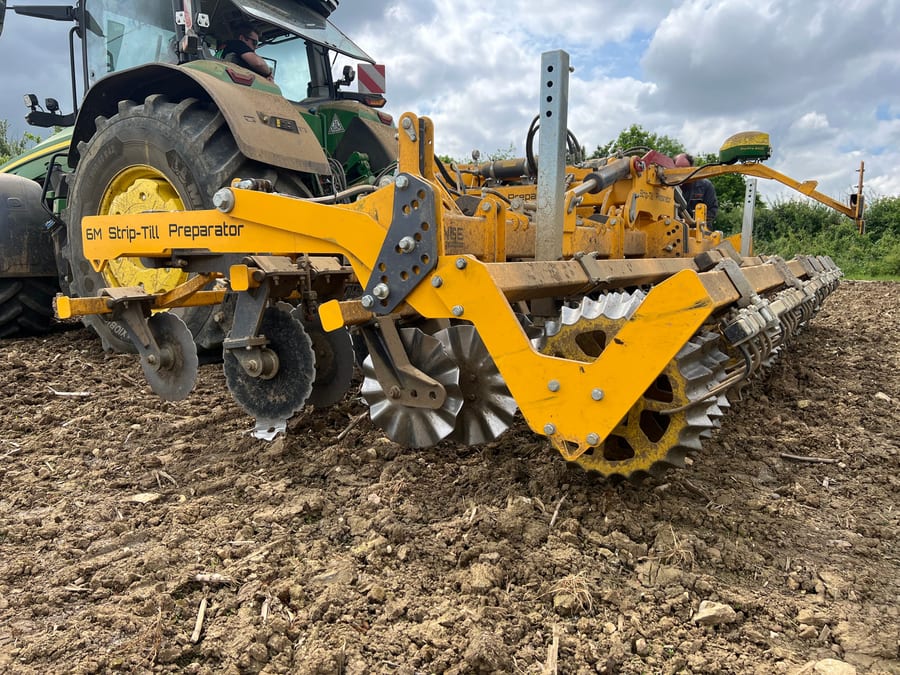

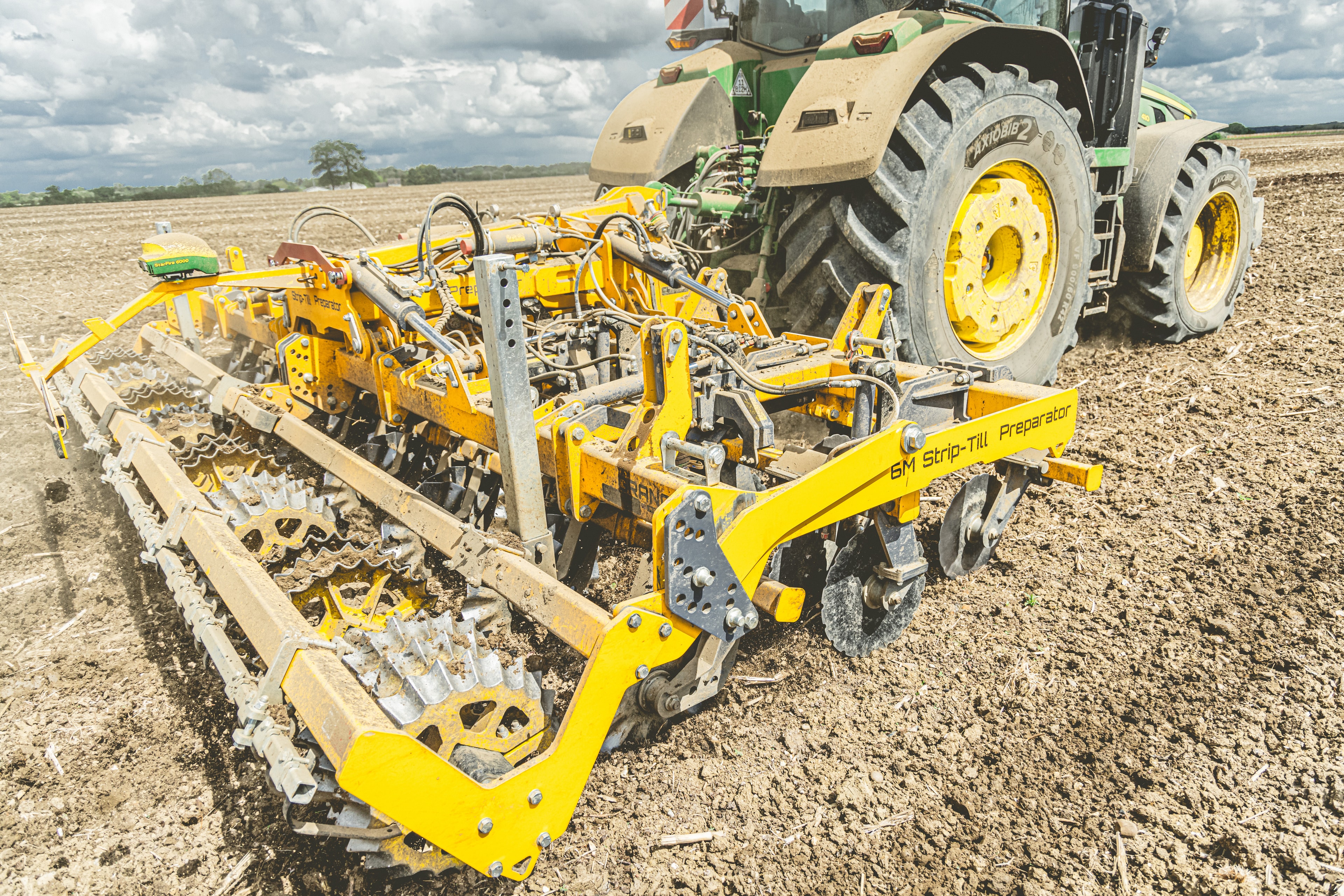

  • Zonal Guttler Prism Ring roller

Find out more

3m 0.5m Row Strip-Till Preparator

Strip-Till Preparator

Show More

Strip-Till Preparator

    Downloads

    3m -Strip-till Preparator 2023 (pdf)Download
