6m Close Coupled Toolbar
Additional Information
The 6m Close Coupled Toolbar is designed to be used as a versatile machine that can be used with both mounted and trailed implements. The Toolbar can be used with 3 point link mounted machines and PTO driven machines such as power harrows. This machine comes with an ‘A’ frame as standard that enables the user to trail machines and still preserve the towing height by hydraulically floating the rear hydraulic rams and having a pre-set upwards linkage height. This allows the machine tines to be fully out of work whilst still towing the rear implement at its desired towing height.
Options and Specifications
6m Close Coupled Toolbar Ability
6m CCT
Designed for farmers running a range of mounted and rear implements. The toolbar can also be used as a Track Eradicator to remove tractor wheelings compacting the soil on the last pass whilst drilling or earlier on in the season post combining.
6m CCT - Hydraulic rear linkage for 3 point link mounted machines and PTO driven implements
The Toolbar can be used with 3 point link mounted machines and PTO driven machines such as power harrows up to 6m wide.
6m Close Coupled Toolbar

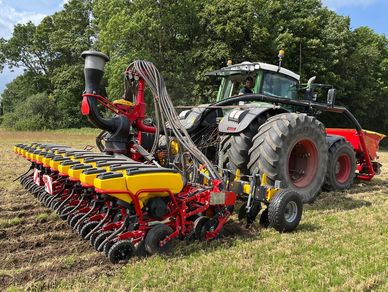

A strong and very well built machine capable of being used with both trailed and mounted machines at 6m working width. The 6m CCT is becoming a very popular model used in combination with power harrows, potato ridgers and a range of mounted and trailed maize drills.
Machine Features
The Close Coupled Toolbar is designed to be used as a versatile machine that can be used with both mounted and trailed implements. We offer the CCT as a Track Eradicator, 3m, 4m and 6m working width machines. The Toolbar can be used with 3 point link mounted machines and PTO driven machines such as power harrows. This machine comes with an ‘A’ frame as standard that enables the user to trail machines and still preserve the towing height by hydraulically floating the rear hydraulic rams and having a pre-set upwards linkage height. This allows the machine tines to be fully out of work whilst still towing the rear implement at its desired towing height.
The Close Coupled Toolbar has been designed for farmers running heavy equipment and struggling with tractor wheelings compacting the soil. The machine has Grange Machinery Low Disturbance legs that are used to lift compacted wheelings up to 12". The machine is used to alleviate compaction whilst improving the soil structure. It has become apparent that farmers are now starting to experience poor crop establishment and growth due to the compaction generated from machinery traffic. The Close Coupled can be used in front of trailed or mounted implements up to 6 metre widths, and can also be used on its own to rip up compacted tramlines. The machine has the option to accommodate PTO driven machines providing greater versatility of one machine. We are seeing the machine being used to trail drills and cultivators but also mounted to combination drills to provide loosening within the system.
Options and Specifications
- x12 Height adjustable Front Cutting Discs
- x12 Low Disturbance loosening legs with a range of 300mm working depth
- Leg spacing - Variable leg spacing to accommodate wheel or track centres
- Hydraulic Rear Linkage - With a detachable ‘A’ frame and clevis
- Compact design - 1.1m from tractor linkage to rear of the close coupled linkage
- Rear Hydraulic services for implements
- PTO compatible to be used with mounted machines
